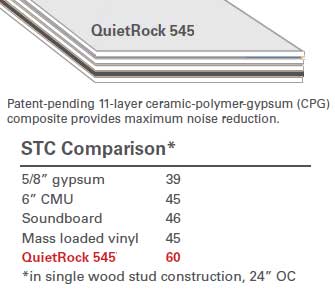

QuietRock 545

QuietRock 545 is uniquely engineered to provide maximum noise reduction for high-end home theaters, commercial theaters, professional studios and music rooms. QuietRock 545 is a superior sound damped panel that offers reliable, high STC ratings with just a single layer.

QuietRock 545 Benefits

• Highest performing sound damping drywall available
• Delivers superior soundproofing for both high and low frequencies
• Ideal for high-end home theaters, studios, commercial theaters, and other sound rooms
• Lab tested and proven to outperform older conventional sound proofing methods
• Offers high STC ratings, up to STC 80

• Documents
• Assembly Guide

General Data   QuietRock 545 Datasheet   QuietRock 545 Installation Instructions - English   QuietRock 545 Installation Instructions - Spanish

Single Wood Stud Staggered Wood Stud Double Wood Stud Light Gauge Steel Stud Heavy Gauge Steel Stud Double Steel Stud • QuietRock on one side • 2x4 wood studs spaced 24” OC with 3-1/2" batt insulation • 5/8” Type X on the other STC STC Report # Fire UL/ULC Design # Panel Thickness Assembly Thickness 56 est. - - 1-3/8” 5-1/2” • QuietRock on both sides • 2x4 wood studs spaced 24” OC with 3-1/2“ batt insulation STC STC Report # Fire UL/ULC Design # Panel Thickness Assembly Thickness 60 TLA-05-048 - - 1-3/8” 6-1/4” • QuietRock over 5/8” Type X on one side • 2x4 wood studs spaced 24” OC with 3-1/2“ batt insulation • 5/8” Type X on the other STC STC Report # Fire UL/ULC Design # Panel Thickness Assembly Thickness 58 est. 1 hour - 1-3/8” 6-1/8” • QuietRock on one side • 2x4 wood studs spaced 8” OC on 6” plates with 6“ minimum batt insulation • 5/8” Type X on the other STC STC Report # Fire UL/ULC Design # Panel Thickness Assembly Thickness 64 est. - - 1-3/8” 7-1/2” • QuietRock on one side • 2x4 wood studs spaced 8” OC on 6” plates with 6“ batt insulation • 2 layers Type X on the other STC STC Report # Fire UL/ULC Design # Panel Thickness Assembly Thickness 67 est. - - 1-3/8” 8-1/8” • QuietRock on both sides • 2x4 wood studs spaced 24” OC, 3” min. air gap with 9-1/2“ batt insulation STC STC Report # Fire UL/ULC Design # Panel Thickness Assembly Thickness 75 TLA-05-040 - - 1-3/8” 12-3/4” • Double layer QuietRock on both sides • 2x4 wood studs spaced 24” OC, 3” min. air gap with 9-1/2“ batt insulation STC STC Report # Fire UL/ULC Design # Panel Thickness Assembly Thickness 80 TLA-05-043 - - 1-3/8” 15-1/2” • QuietRock on one side • 3-5/8” 25-ga. steel studs spaced 24” OC with 3-1/2“ batt insulation • 5/8” Type X on the other STC STC Report # Fire UL/ULC Design # Panel Thickness Assembly Thickness 62 est. - - 1-3/8” 5-5/8” • QuietRock on both sides • 3-5/8” 25-ga. steel studs spaced 24” OC with 3-1/2“ batt insulation STC STC Report # Fire UL/ULC Design # Panel Thickness Assembly Thickness 67 est. - - 1-3/8” 6-3/8” • QuietRock on one side • 3-5/8” 25-ga. steel studs spaced 24” OC with 3-1/2“ batt insulation • 2 layers 5/8” Type X on the other STC STC Report # Fire UL/ULC Design # Panel Thickness Assembly Thickness 65 est. - - 1-3/8” 6-1/4” • 5/8” Type X over QuietRock on one side • 3-5/8” 25-ga. steel studs spaced 24” OC with 3-1/2“ batt insulation • 2 layers 5/8” Type X on the other STC STC Report # Fire UL/ULC Design # Panel Thickness Assembly Thickness 67 est. 1 hour - 1-3/8” 6-7/8” • QuietRock on both sides • 3-5/8” 16-ga. steel studs spaced 16” OC with 3-1/2“ batt insulation STC STC Report # Fire UL/ULC Design # Panel Thickness Assembly Thickness 55 est. - - 1-3/8” 5-5/8” • QuietRock on both sides • 6” 16-ga. steel studs spaced 16” OC with 6“ batt insulation STC STC Report # Fire UL/ULC Design # Panel Thickness Assembly Thickness 60 est. - - 1-3/8” 8-3/4” • QuietRock on one side • 3-5/8” 25-ga. steel studs spaced 24” OC, 1” min air gap with 3-1/2“ batt insulation both sides • 5/8” Type X on the other STC STC Report # Fire UL/ULC Design # Panel Thickness Assembly Thickness 70 est. - - 1-3/8” 10” • QuietRock on both sides • 3-5/8” 25-ga. steel studs spaced 24” OC, 1” min air gap with 3-1/2“ batt insulation both sides STC STC Report # Fire UL/ULC Design # Panel Thickness Assembly Thickness 74 est. - - 1-3/8” 10-3/4”
